Navigation Sjablones 'Vlaamse Banken" 1/100000

Sjablones for 2 hours max stepped by 1/2 hour reference High water Zeebrugge.

Easy and very fast navigation for current calculation ( for Belgian coast - Vlaamse Banken )

Only info needed is start-position, destination-position, start-time in Ref. of HW Zeebrugge and estimated time of rack( distance/speed ).

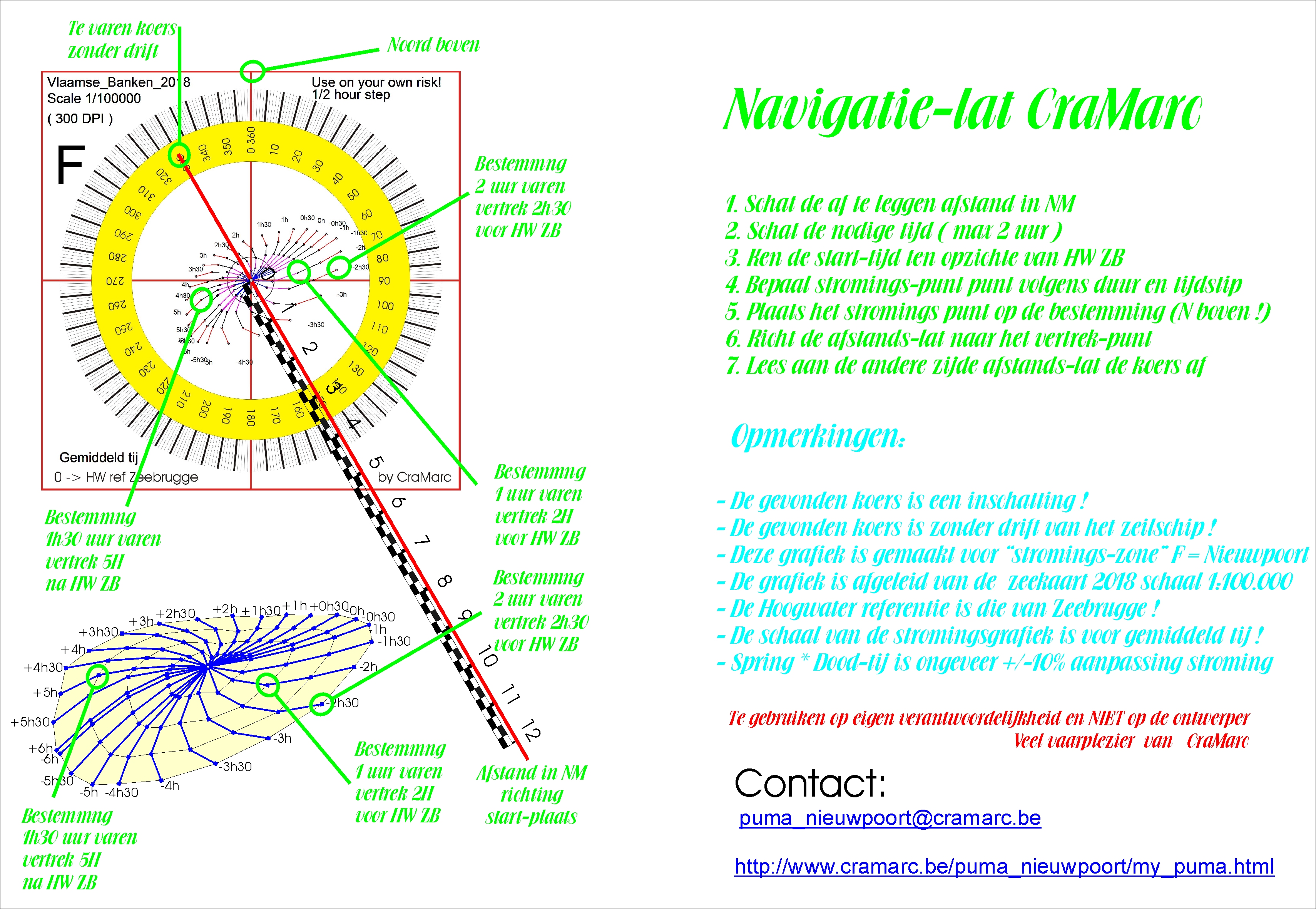

1. Check distance to have an idea of the rack-time
2. Check needed time in function of speed ( max 2 hours )
3. Know start-time in Ref. High Water Zeebrugge
4. Select cuurent-point in fuction of start-time and durattion
5. Set current-point on destination mark (Sjablone North up !)
6. Draw line to start-point ( with ruler atached to the center of the sjablone )
7. Read on the degrees-scale the corrected course .

REMARKS

- Found course is without the drift of the sailboat due to the wind !

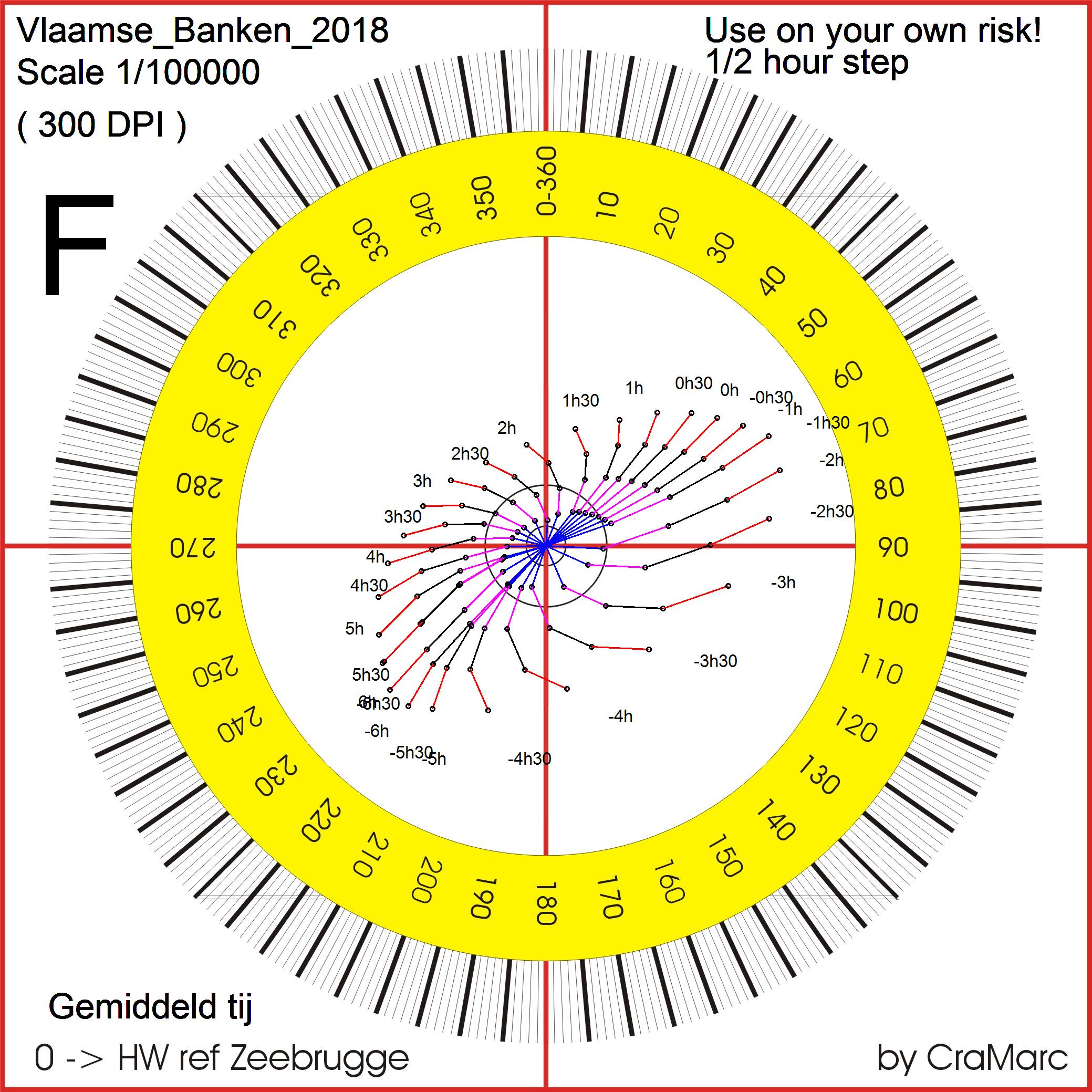

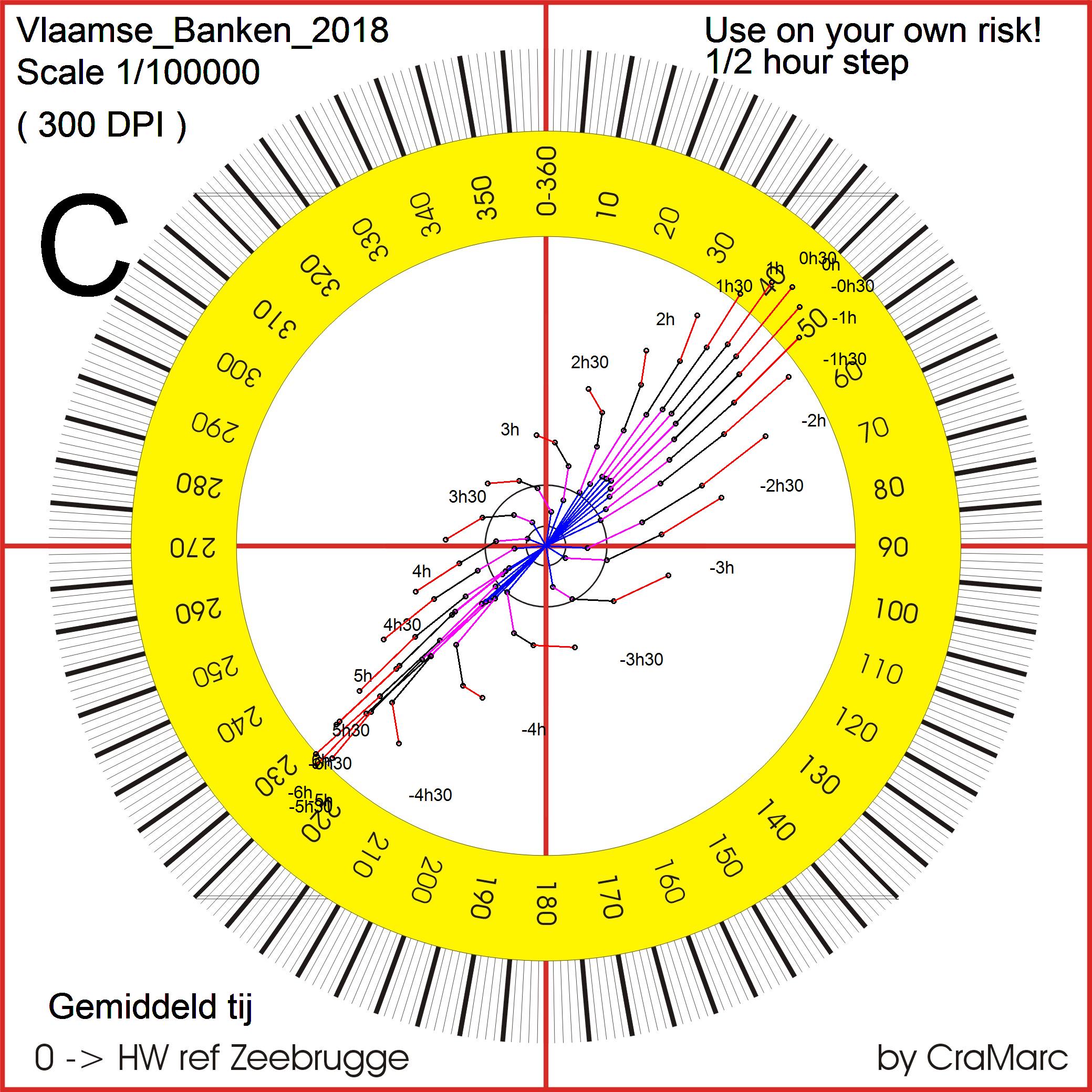

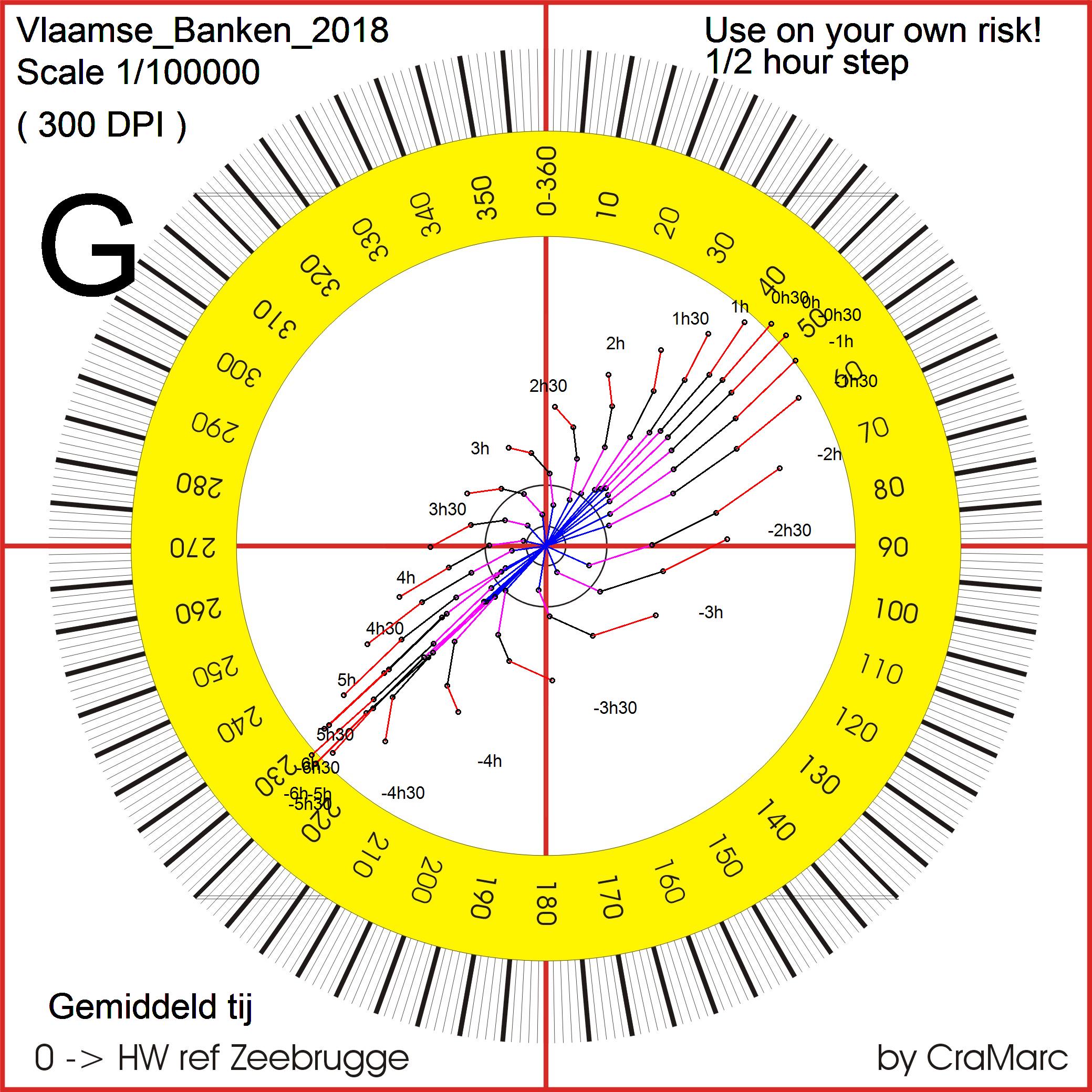

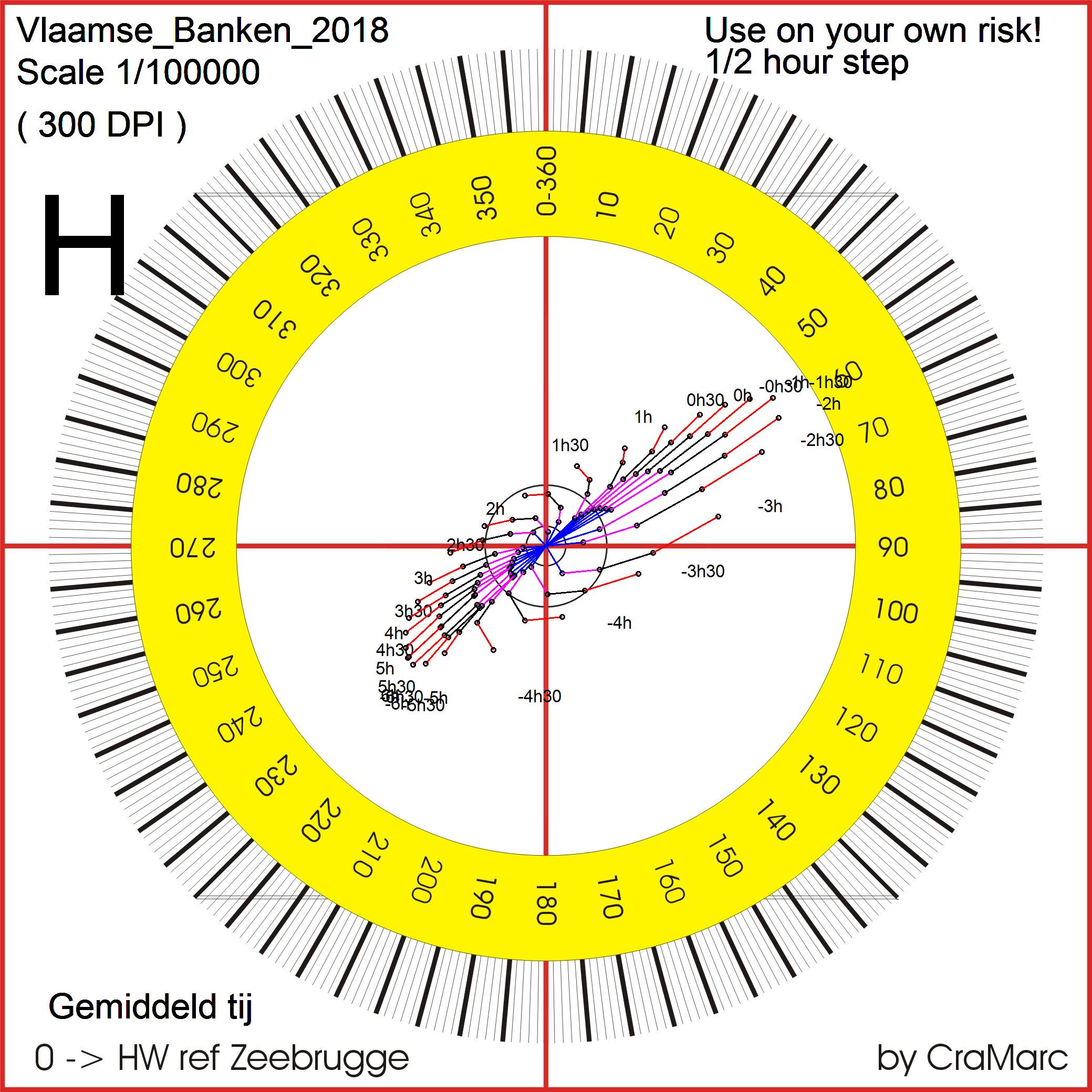

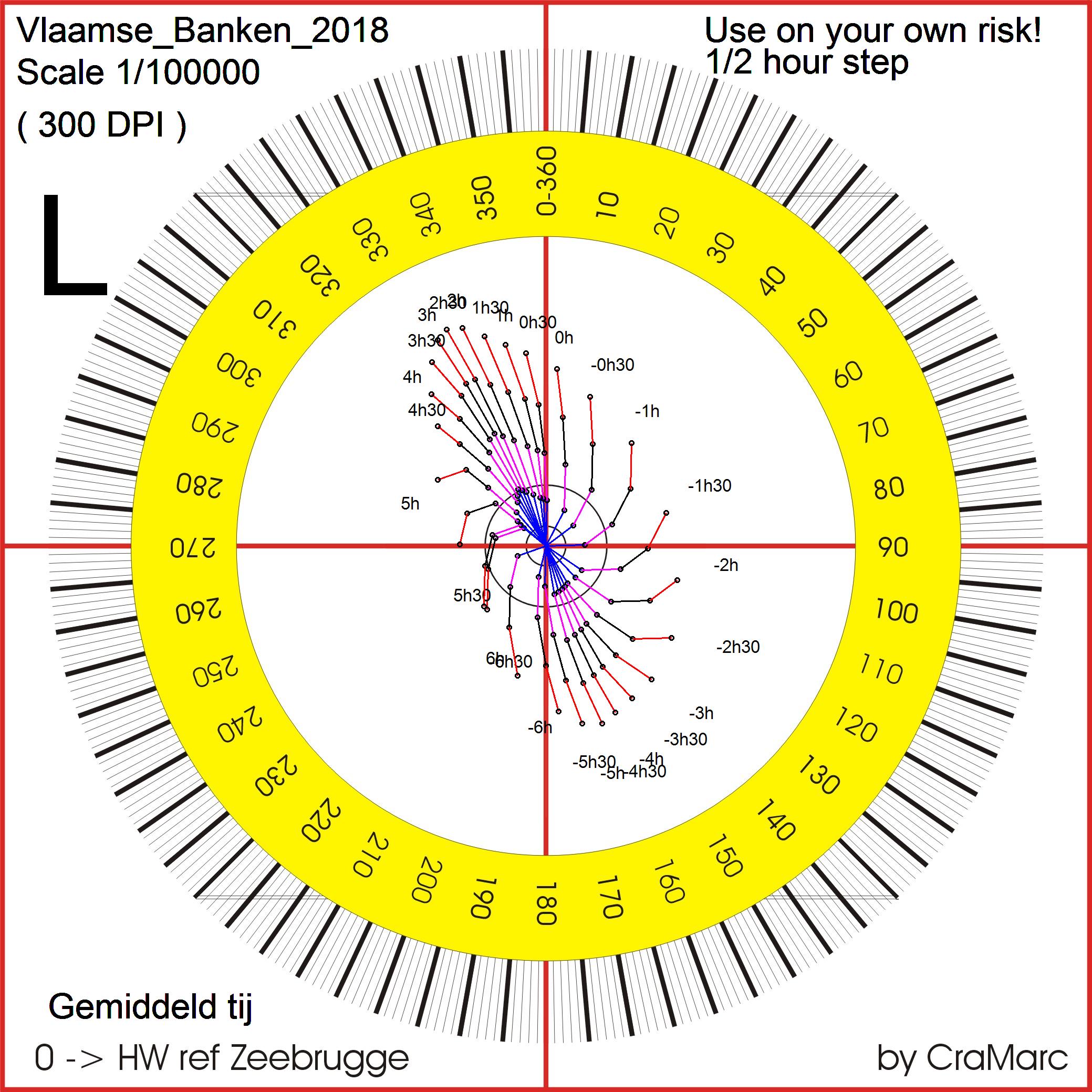

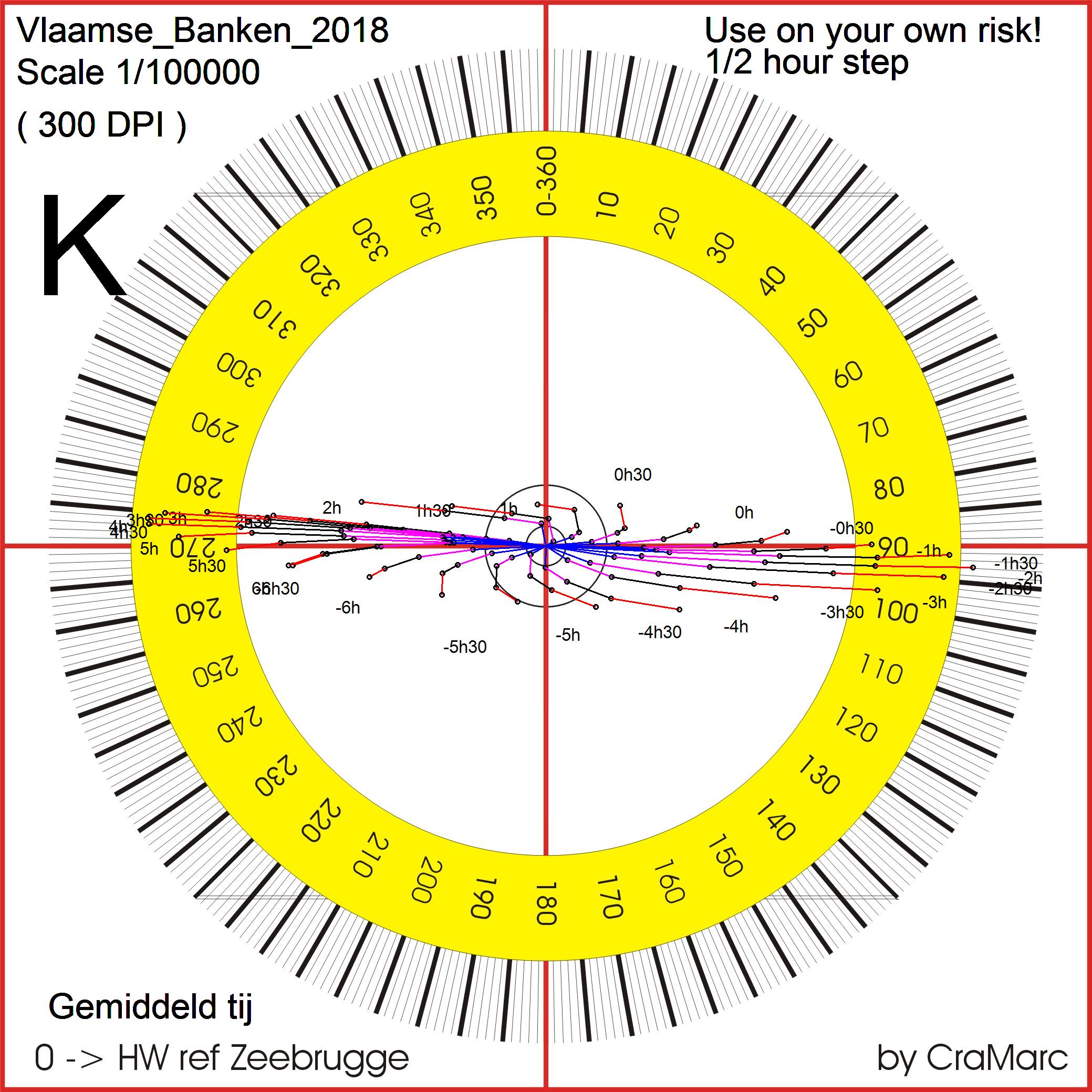

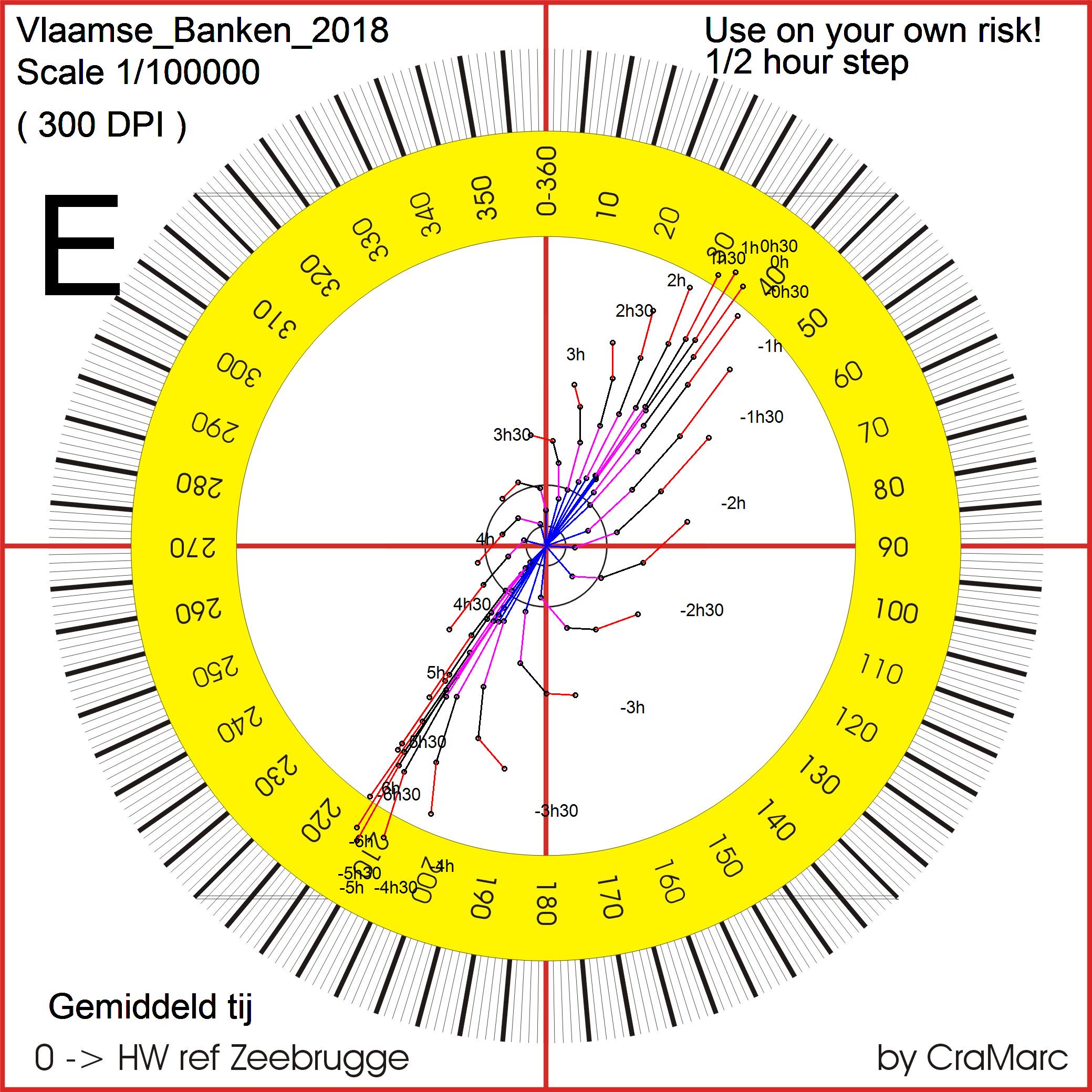

- There is a sjablone for each current-zone (” F" = Nieuwpoort)
- Sjablones are calculated from currents-table on "zeekaart Vlaamse Banken 2018 scale 1:100.000
- Highe water reference = HW Zeebrugge !
- Sjablones are calculated for medium tides !
- Tides could change about +/-10% due to the cyclus

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

You can use this sjablones at your OWN RISK,

I am NOT responsable if I had made a mistake.( mail me if I did so )

If you download those files you agree with this !

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

DOWNLOAD Section

Short users info ( Nederlands )

Sjablones scaled 300 DPI for "Vlaamse Banken 2018 scale 1/100000

Can be printed on transparant foils to be used on the paper maps.

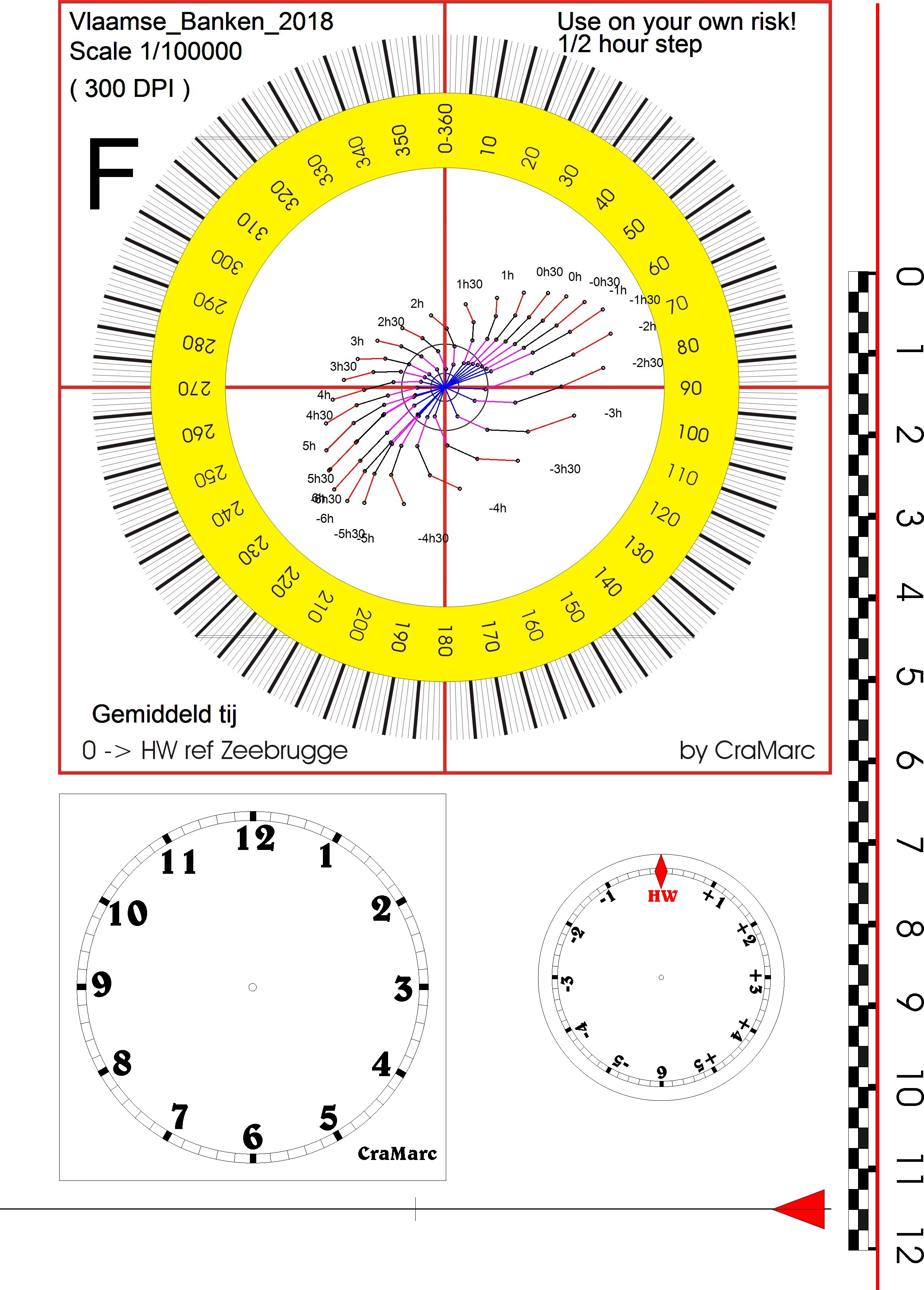

Ref with rulers and Dif calculator for Zeebrugge ( Zone F Nieuwpoort )

Zone F Nieuwpoort

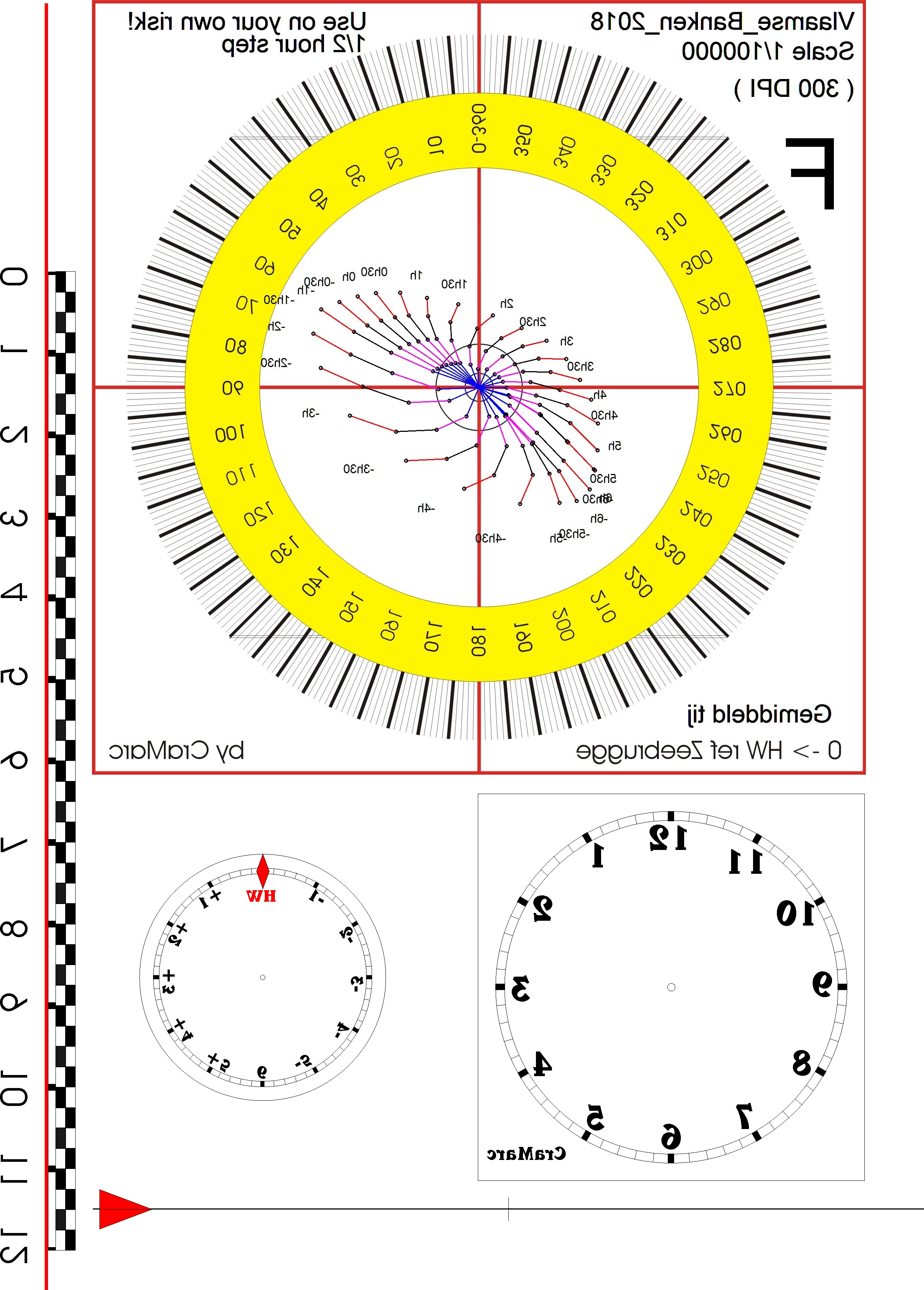

Zone F Nieuwpoort Mirrored

Only sjablone

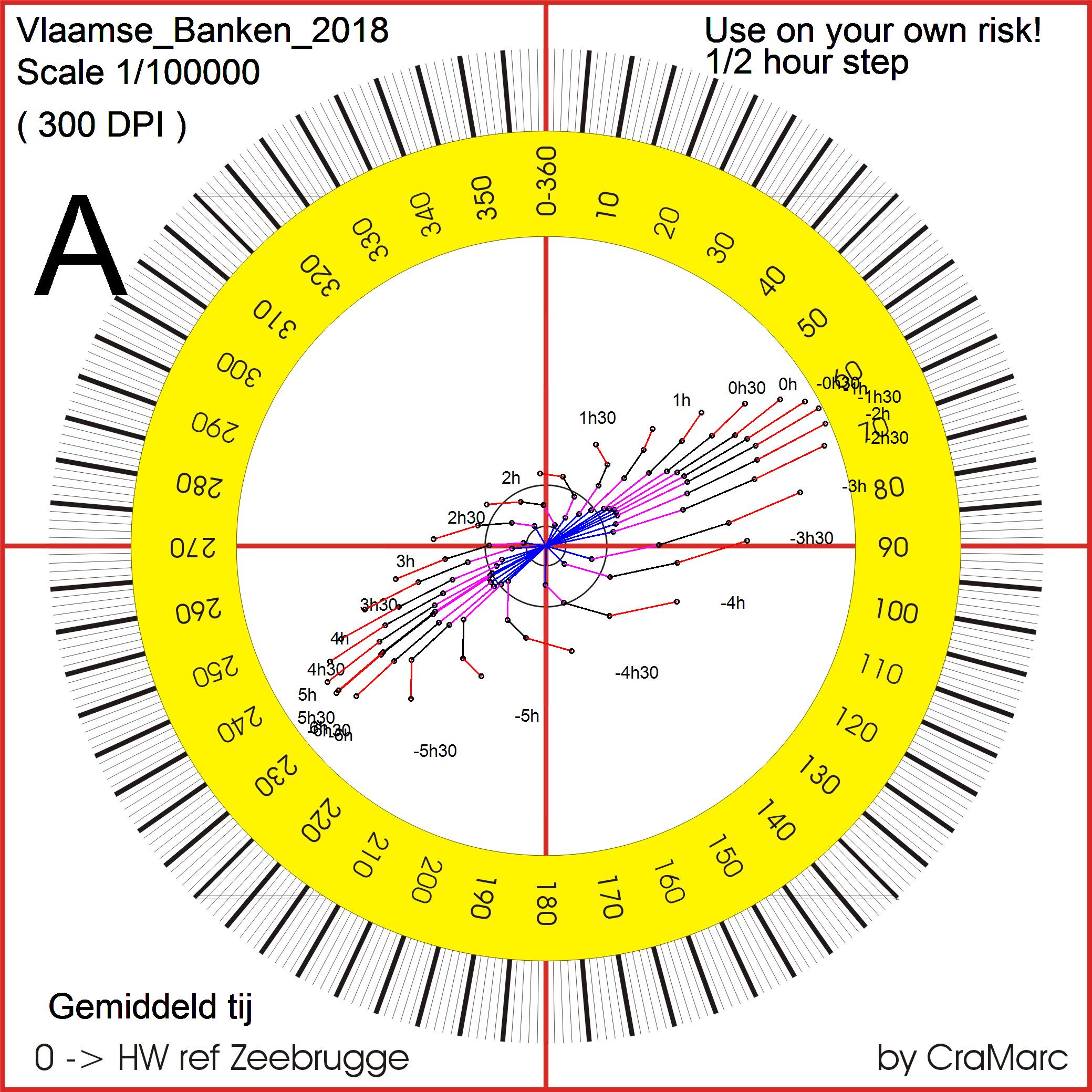

Zone A

Zone B

Zone C

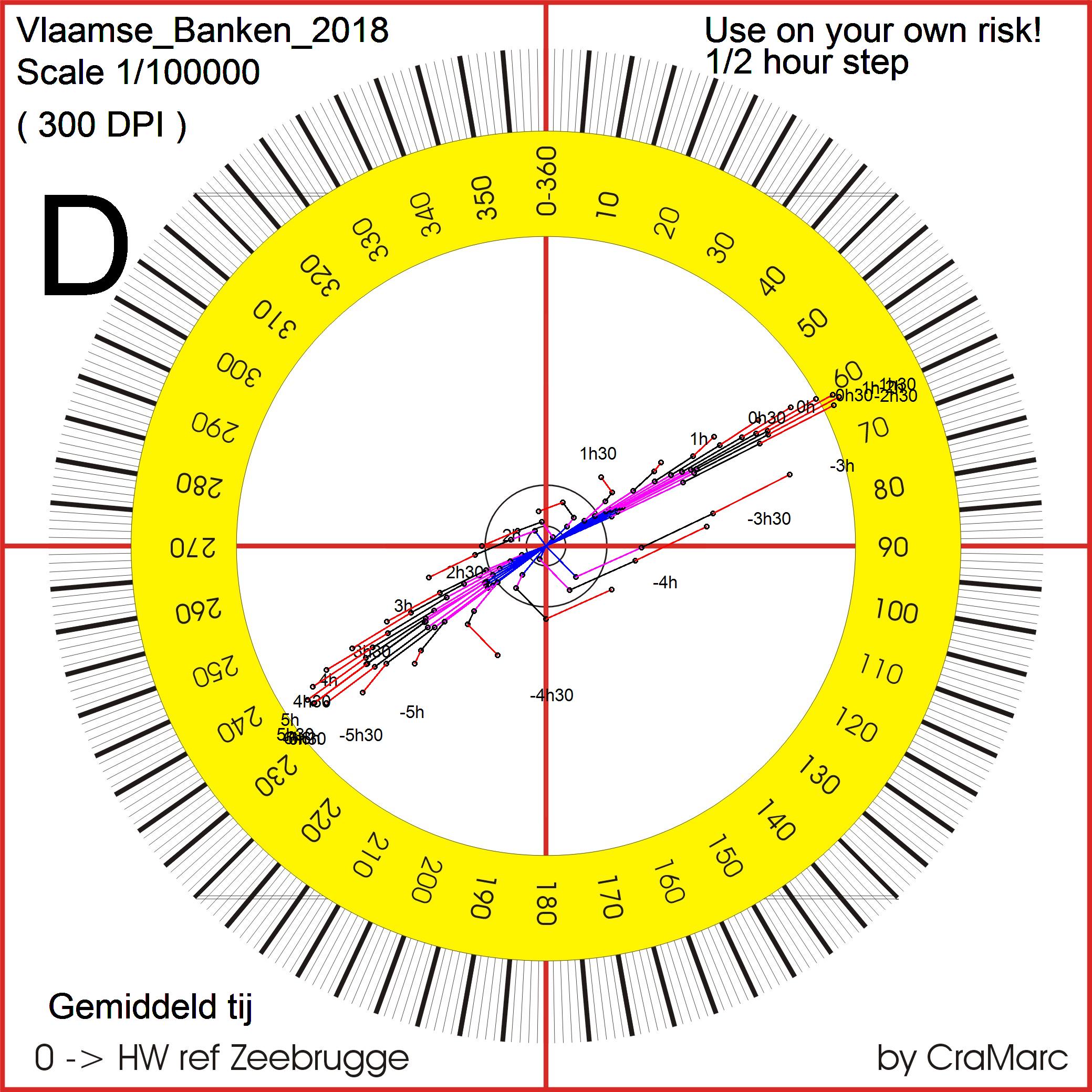

Zone D

Zone E

Zone F

Zone G

Zone H

Zone I

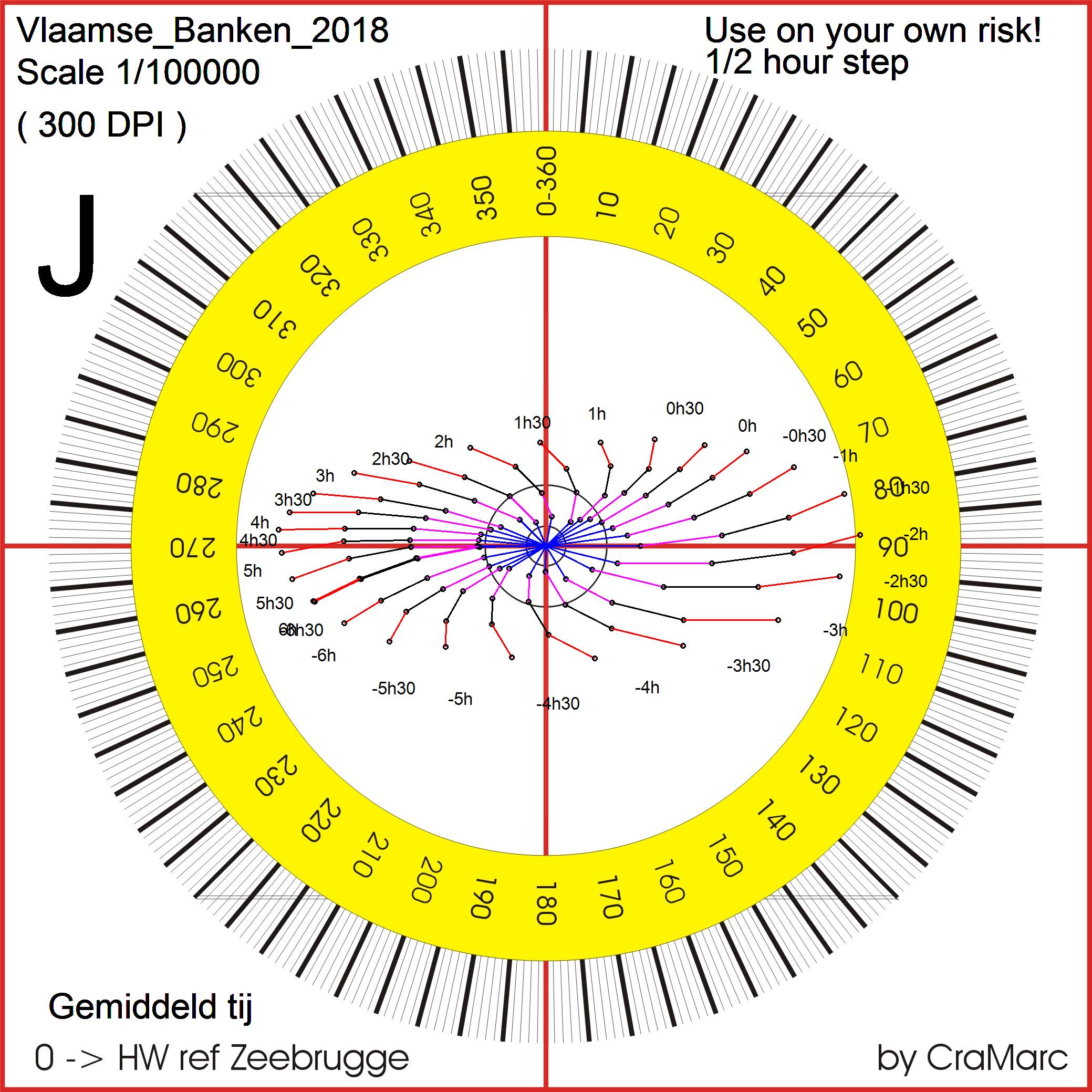

Zone J

Zone K

Zone L

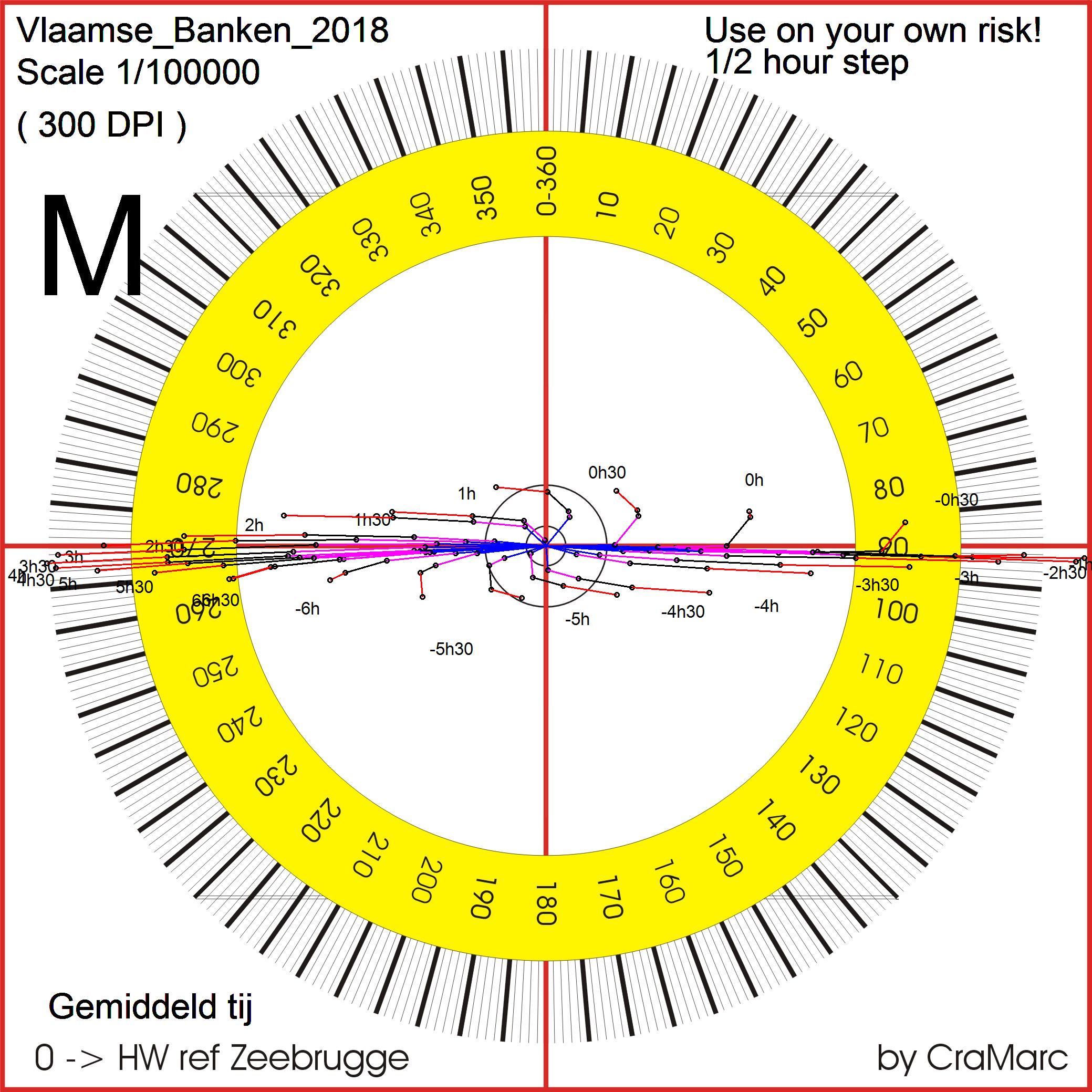

Zone M
